• Para deslizar a la pieza módulo

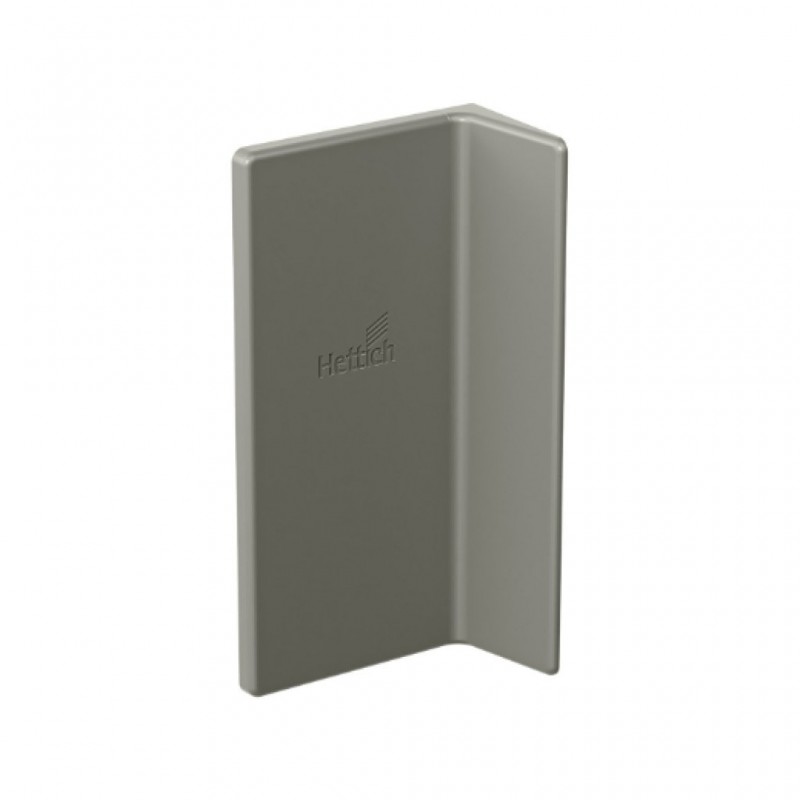

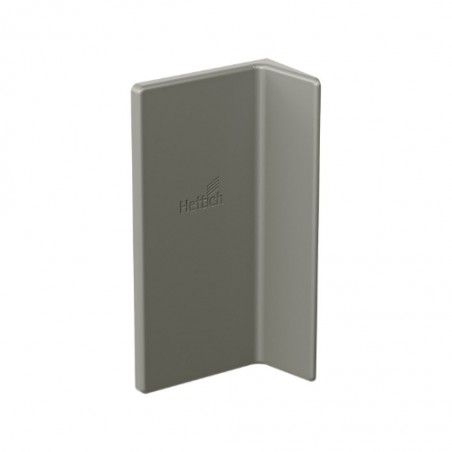

• Tapa apto para resalte de trasera > 20 mm < 33 mm Tipo B
• Espesor admisible de la pared trasera 3 - 8 mm
• Plástico

Indicaciones:
• Aplicable con pieza módulo SAH 500

Information on load capacity of cabinet suspension brackets and on accessories
The following basic loading principles must be observed when using cabinet suspension brackets and accessories:
• Both the furniture design and the quality of the furniture s material and production are beyond our control.
• The quality and condition of the wall materials. as well as its general load bearing properties is also beyond our control.
• It is the fitter s/customer s responsibility to assess the wall and select suitable fixing hardware.
• The fixing screws must meet the following requirements:
minimum strength class: 5.8
min. shaft diameter 4 mm
flat head of at least 10 mm in diameter.
• Add on elements, such as end shelves, must not be fitted without separate suspension bracket.
• The cabinet maker / retailer is responsible for ensuring that the furniture marketed meets the latest requirements of local standards and guidelines, such as furniture standard EN 14749 applicable in Europe.
