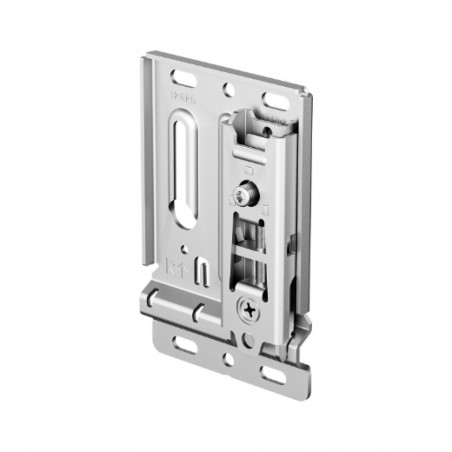

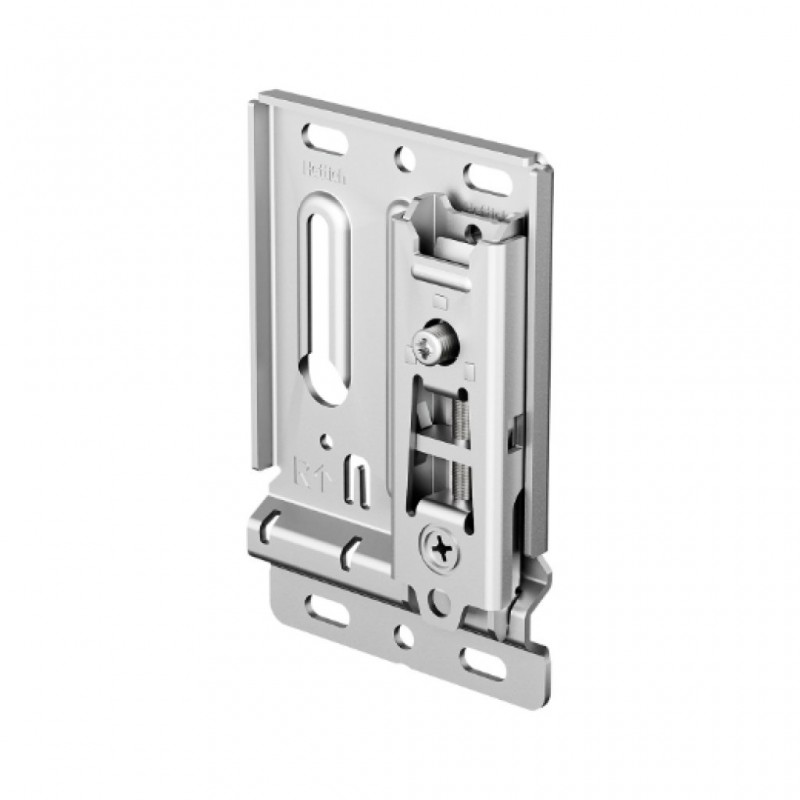

• Pieza mural de montaje tirafondos en la pared
• El seguro antidescuelgue integrado evita que el armario alto pueda caerse de forma involuntaria según la norma para muebles DIN EN 14739
• Alineación tridimensional: altura +/- 11 mm, profundidad + 10 / - 2 mm, lateral +/- 3 mm
• Los tornillos de regulación están asegurados contra un desenroscado no intencionado
• Altura de elevación para descolgar: 6,5 mm
• Espesor admisible de la pared trasera 3 - 8 mm
• Se puede usar también sin trasera
• Acero cincado completamente reciclable

Indicaciones:
• Aplicable con pieza módulo SAH 500
• Las tapas opcionales deben pedirse por separado

Information on load capacity of cabinet suspension brackets and on accessories
The following basic loading principles must be observed when using cabinet suspension brackets and accessories:
• Both the furniture design and the quality of the furniture s material and production are beyond our control.
• The quality and condition of the wall materials. as well as its general load bearing properties is also beyond our control.
• It is the fitter s/customer s responsibility to assess the wall and select suitable fixing hardware.
• The fixing screws must meet the following requirements: minimum strength class: 5.8 min. shaft diameter: 4 mm flat head of at least 10 mm in diameter.
• Add on elements, such as end shelves, must not be fitted without separate suspension bracket.
• The cabinet maker / retailer is responsible for ensuring that the furniture marketed meets the latest requirements of local standards and guidelines, such as furniture standard EN 14749 applicable in Europe.
